    500GS To 1800GS SmFeN Flexible Rubber Magnet Sliver Gray Motor Magnetic Strip

    Ask Lasest Price
    Brand Name : MGT
    Model Number : MGT-Rubber SmFeN
    Price : USD 0.1-100USD/pc
    Payment Terms : T/T
    Supply Ability : 50000Pcs/Week
    Delivery Time : 1-2 weeks
    Certification : ISO9001:2015
    • Product Details
    • Company Profile

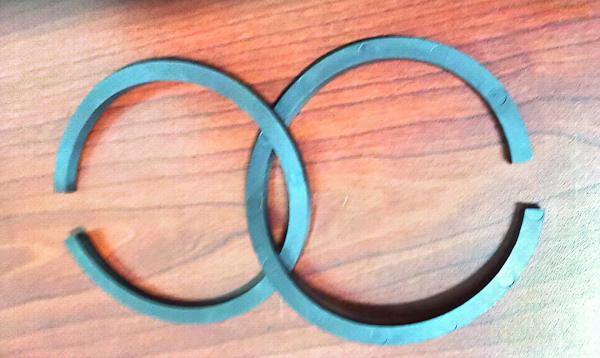

    500GS To 1800GS SmFeN Flexible Rubber Magnet Sliver Gray Motor Magnetic Strip

    Flexible SmFeN Rubber Magnet SmFeN Magnetic Sheet Motor Magnetic Strip Anti-Rust Magnet


    Application

    • The magnetic properties of rubber samarium iron nitrogen magnets range from 2-5MGOe, which can be widely used in machinery, medical equipment, outdoor advertising display purposes, and are also widely used in the field of micro motors, such as: fan motors, sensor motors, refrigerators, microwave ovens and other household appliances Use of electrical and sanitary products

    Features

    • Anti-drop and broken, good flexibility and bending
    • Wear-resistant, long service life, excellent cost performance, good thermal stability, long-term high temperature will not demagnetize;
    • Good workability, can be cut, punched, bent, and pasted
    • Completely waterproof, can be used for a long time in a humid environment without being corroded
    • Operating temperature range -30 to 85 degrees


    Product standards Of Flexible SeFeN Magnet
    Version2020-02-02
    1-1
    Magnetic Properties
    Material TypeMGT-RS2MGT-RS3MGT-RS4
    BrGs3000±5003300±5004300±500
    mT300±50330±50430±50
    HcbOe2000±5002600±5003200±500
    kA/m159±40207±40255±40
    HcjOe3000±10005800±10007800±1000
    kA/m239±80462±80621±80
    (BH)maxMGOe2±0.53±0.54±0.5
    kJ/m316±424±432±4
    Flux Irreversible Loss%<5<5<5
    (αBr)%/℃-0.11-0.11-0.11
    Temperature Coefficient of Br
    Max Operating Temp808080
    Physical Properties
    Densityg/cm34-4.84.5-54.5-5.3
    HardessShore D30-70
    Tensile StrengthMpa>3.5
    Elongation%20-90
    Size Range
    Thickness(mm)Range0.2-0.30.4-1.01.1-2.02.1-3≥3.1Remark:This data is only applicable to the general situation, and the specific product is determined according to the delivery specifications
    Tolerance±0.03±0.05±0.07±0.1±0.15
    Width (mm)Range1-3031-100101-200201-400401-450
    Tolerance±0.1±0.15±0.3±0.5±1
    Length (mm)Range1-3031-100101-200201-400≥401
    Tolerance±0.1±0.15±0.3±0.51-5
    Technical information can be change without furture notice
