Pump Permanent Neodymium Office Magnet Motor Stator Rotor Magnets Assembly

Magnetic Assembly

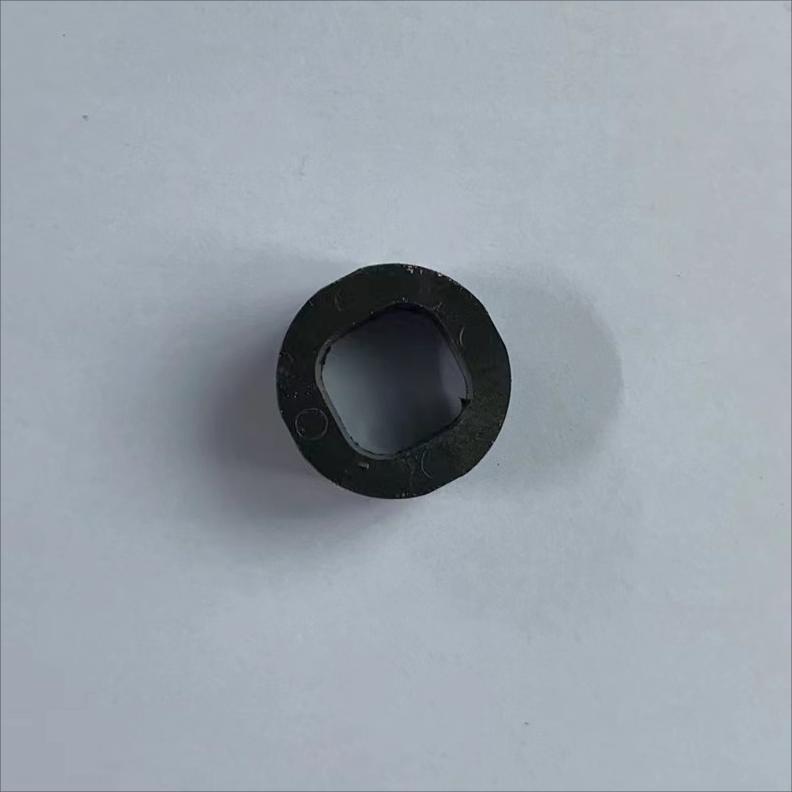

Magnetic assembly combined by magnetic material with other components, for instance, plastic part, lamination stacks, metal part, etc.

We are able to provide magnetic assemblies:

- Stator and rotor with magnetic materials for pump, liner motors;

- Pot magnets by Sintered NdFeB magnet/ Ferrite magnet/Flexible magnets for home, office and fishing application;

- Other Customized magnetic assembly.

Features

u Professional team provide project developing supports

u State-of-the-art equipment and laboratories

u Supply magnetic simulation support

u Efficient automatic production line

Application

• Injection-molded NdFeB magnet is a kind of magnetic properties 3MGOe-12MGOe rare earth magnetic material.
• At present, NdFeB injection magnets can be divided into: Isotropic NdFeB Injection Magnets and Anisotropic NdFeB Injection Magnets. According to the working temperature, they can be divided into PA12 NdFeB Injection Magnets and PPS NdFeB Injection Magnets . PA12 magnets can work in the range of -45°C to 120°C; PPS magnets can work in the range of -45°C to 200°C.
• It is mainly used in various motors and has convenient manufacturing technology, which is similar to the processing method of injection molding ferrite magnets.
• Product maturity is high, product qualification rate is high, suitable for 20 tons -200 tons of various types of injection molding machines. The formed magnets have excellent appearance and high dimensional accuracy. The magnets can be integrally formed with copper, stainless steel, plastic bearings and other types of inlays. They can be widely used in micro motors, motor rotors and sensors, automotive motors, as well as household appliances and toys.

Feature

• The PA12 model is currently Anisotropic NdFeB Injection Magnets that can produce magnets with properties up to 12MGOe or more, which can exceed the performance of bonded molded NdFeB magnets.
• The advantages of accurate size, light weight, thin wall and complex shape.
• The PPS model has excellent anti-rust performance and can work in humid and low temperature environments for a long time.
• The magnetic properties are stable and can be bonded together with other metal parts.
• Electronic products with high precision and performance requirements can meet their requirements.

Parameters of Sintered NdFeB Magnets

			QINGDAO MAGNET MAGNETIC MATERIAL CO.,LTD. Sintered NdFeB Magnet Performance Parameter
Grade	Br(20℃)		Coercivity				BH(max)(20℃)		Temperature Coefficient			Density	Max.Working Temp.
	Br		Hcj		Hcb		BH(max) MGOe		T1-T2	TK(Br) Reference	TK(Hcj) Reference	ρ Reference	Tmax Reference
	T	KGs	kA/m	kOe	kA/m	kOe	kJ/m³	MGOe	℃	％/℃	％/℃	g/cm³	℃	℉
N35	1.18-1.24	11.8-12.4	≥955	≥12	≥860	≥10.8	263-295	33-37	20-80	-0.105	-0.75	7.45	80	176
N38	1.23-1.28	12.3-12.8	≥955	≥12	≥899	≥11.3	287-310	36-39				7.45	80	176
N40	1.26-1.31	12.6-13.1	≥955	≥12	≥915	≥11.5	302-326	38-41				7.45	80	176
N42	1.29-1.34	12.9-13.4	≥955	≥12	≥915	≥11.5	318-350	40-44				7.50	80	176
N45	1.33-1.38	13.3-13.8	≥955	≥12	≥915	≥11.5	342-366	43-46				7.50	80	176
N48	1.37-1.41	13.7-14.1	≥955	≥12	≥915	≥11.5	358-382	45-48				7.55	80	176
N50	1.39-1.43	13.9-14.3	≥955	≥12	≥915	≥11.5	374-398	47-50				7.55	80	176
N52	1.42-1.47	14.2-14.7	≥955	≥12	≥915	≥11.5	390-414	49-52				7.60	80	176
N54	1.45-1.50	14.5-14.0	≥876	≥11	≥836	≥10.5	406-430	51-54				7.60	80	176
35M	1.18-1.24	11.8-12.4	≥1114	≥14	≥868	≥10.9	263-295	33-37	20-100	-0.105	-0.70	7.45	100	212
38M	1.23-1.28	12.3-12.8	≥1114	≥14	≥907	≥11.4	287-310	36-39				7.45	100	212
40M	1.26-1.31	12.6-13.1	≥1114	≥14	≥931	≥11.7	302-326	38-41				7.50	100	212
42M	1.29-1.34	12.9-13.4	≥1114	≥14	≥955	≥12.0	318-350	40-44				7.50	100	212
45M	1.33-1.38	13.3-13.8	≥1114	≥14	≥987	≥12.4	342-366	43-46				7.55	100	212
48M	1.37-1.41	13.7-14.1	≥1114	≥14	≥1019	≥12.8	358-382	45-48				7.55	100	212
50M	1.39-1.43	13.9-14.3	≥1114	≥14	≥1035	≥13.0	374-398	47-50				7.60	100	212
52M	1.42-1.47	14.2-14.7	≥1114	≥14	≥1059	≥13.3	390-414	49-52				7.60	100	212
54M*	1.45-1.50	14.5-14.0	≥1114	≥14	≥1075	≥13.5	406-430	51-54				7.60	100	212
35H	1.18-1.24	11.8-12.4	≥1353	≥17	≥876	≥11.0	263-295	33-37	20-120	-0.105	-0.60	7.45	120	248
38H	1.23-1.28	12.3-12.8	≥1353	≥17	≥915	≥11.5	287-310	36-39				7.45	120	248
40H	1.26-1.31	12.6-13.1	≥1353	≥17	≥939	≥11.8	302-326	38-41				7.50	120	248
42H	1.29-1.34	12.9-13.4	≥1353	≥17	≥963	≥12.1	318-350	40-44				7.50	120	248
45H	1.33-1.38	13.3-13.8	≥1353	≥17	≥995	≥12.5	342-366	43-46				7.55	120	248
48H	1.37-1.41	13.7-14.1	≥1274	≥16	≥1027	≥12.9	358-382	45-48				7.55	120	248
50H	1.39-1.43	13.9-14.3	≥1274	≥16	≥1043	≥13.1	374-398	47-50				7.60	120	248
52H*	1.42-1.47	14.2-14.7	≥1274	≥16	≥1067	≥13.4	390-414	49-52				7.60	120	248
35SH	1.18-1.24	11.8-12.4	≥1592	≥20	≥884	≥11.1	263-295	33-37	20-150	-0.105	-0.55	7.50	150	302
38SH	1.23-1.28	12.3-12.8	≥1592	≥20	≥923	≥11.6	287-310	36-39				7.50	150	302
40SH	1.26-1.31	12.6-13.1	≥1592	≥20	≥947	≥11.9	302-326	38-41				7.55	150	302
42SH	1.29-1.34	12.9-13.4	≥1592	≥20	≥971	≥12.0	318-350	40-44				7.55	150	302
45SH	1.33-1.38	13.3-13.8	≥1592	≥20	≥1003	≥12.6	342-366	43-46				7.60	150	302
48SH	1.37-1.41	13.7-14.1	≥1592	≥20	≥1035	≥13.0	358-382	45-48				7.60	150	302
50SH	1.39-1.43	13.9-14.3	≥1592	≥20	≥1051	≥13.2	374-398	47-50				7.60	150	302
52SH*	1.42-1.47	14.2-14.7	≥1592	≥20	≥1075	≥13.3	390-414	49-52				7.60	150	302
30UH	1.08-1.15	10.8-11.5	≥1990	≥25	≥812	≥10.2	223-255	28-32	20-180	-0.115	-0.45	7.55	180	356
33UH	1.14-1.19	11.4-11.9	≥1990	≥25	≥860	≥10.8	247-271	31-34				7.55	180	356
35UH	1.18-1.24	11.8-12.4	≥1990	≥25	≥892	≥11.2	263-295	33-37				7.55	180	356
38UH	1.23-1.28	12.3-12.8	≥1990	≥25	≥931	≥11.7	287-310	36-39				7.60	180	356
40UH	1.26-1.31	12.6-13.1	≥1990	≥25	≥955	≥12.0	302-326	38-41				7.60	180	356
42UH	1.29-1.34	12.9-13.4	≥1990	≥25	≥979	≥12.3	318-350	40-44				7.60	180	356
45UH	1.33-1.38	13.3-13.8	≥1990	≥25	≥1011	≥12.7	342-366	43-46				7.60	180	356
48UH*	1.36-1.40	13.6-14.0	≥1990	≥25	≥1035	≥13.0	358-382	45-48				7.60	180	356
50UH*	1.38-1.42	13.8-14.2	≥1990	≥25	≥1051	≥13.2	374-398	47-50				7.60	180	356
30EH	1.08-1.15	10.8-11.5	≥2388	≥30	≥820	≥10.3	223-255	28-32	20-200	-0.115	-0.45	7.55	200	392
33EH	1.14-1.19	11.4-11.9	≥2388	≥30	≥868	≥10.9	247-271	31-34				7.55	200	392
35EH	1.18-1.24	11.8-12.4	≥2388	≥30	≥899	≥11.3	263-295	33-37				7.6	200	392
38EH	1.22-1.26	12.2-12.6	≥2388	≥30	≥931	≥11.7	287-310	36-39				7.6	200	392
40EH	1.25-1.29	12.6-13.1	≥2388	≥30	≥955	≥12.0	302-326	38-41				7.65	200	392
42EH*	1.28-1.32	12.8-13.2	≥2388	≥30	≥979	≥12.3	318-350	40-44				7.65	200	392
45EH*	1.32-1.37	13.2-13.7	≥2388	≥30	≥1011	≥12.7	342-366	43-46				7.65	200	392
48EH*	1.36-1.40	13.6-14.0	≥2388	≥30	≥1035	≥13.0	358-382	45-48				7.65	200	392
30TH	1.08-1.15	10.8-11.5	≥2786	≥35	≥820	≥10.3	223-255	28-32	20-250	-0.115	-0.40	7.6	250	482
33TH	1.14-1.19	11.4-11.9	≥2786	≥35	≥868	≥10.9	247-271	31-34				7.6	250	482
35EH	1.18-1.24	11.8-12.4	≥2786	≥35	≥899	≥11.3	263-295	33-37				7.65	250	482
38EH	1.22-1.26	12.2-12.6	≥2786	≥35	≥931	≥11.7	287-310	36-39				7.65	250	482
40EH*	1.25-1.29	12.6-13.1	≥2786	≥35	≥955	≥12.0	302-326	38-41				7.65	250	482
Note: Grades with *marked apply special processes.

• The company was established in 2014 and its registered address is Qingdao, China
• The company's main products are: Rare earth metals, Rare earth magnetic powder, Rare earth NdFeB Compound, Rare earth Samarium-Iron-Nitrogen Compound, Various magnetic materials: Bonded NdFeB Magnets,Injection molding NdFeB Magnets, Injection molding SmFeN Magnets,Sintered NdFeB Magnets, magnetic Assemblies;
• The current annual sales are 20-25 million RMB or 3-4 million US dollars
• Magnetic powder and rare earth metal sales accounted for 50%; Particles and magnetic materials accounted for 30%; Magnetic Assemblies: 20%
• We have R&D and manufacturing capabilities from rare earth magnetic powder to magnetic materials
• At present, we provide high-quality products to customers in China, Japan, Korea, Germany and other countries.
